CAD (Computer-Aided Design) and BIM (Building Information Modelling) are two powerful tools in architecture, engineering, and construction (AEC). Urban planners, engineers, and designers must comprehend the distinction between BIM and CAD to build smarter, more sustainable, and more effective cities.

I have experience working on large-scale models and city-wide spatial strategies because I have a background in urban planning and GIS. Tools like CAD and BIM have changed how we create and present urban planning. This article will discuss the main distinctions between BIM and CAD, their advantages, and when to use each, especially in urban design environments.

‍

What Is CAD?

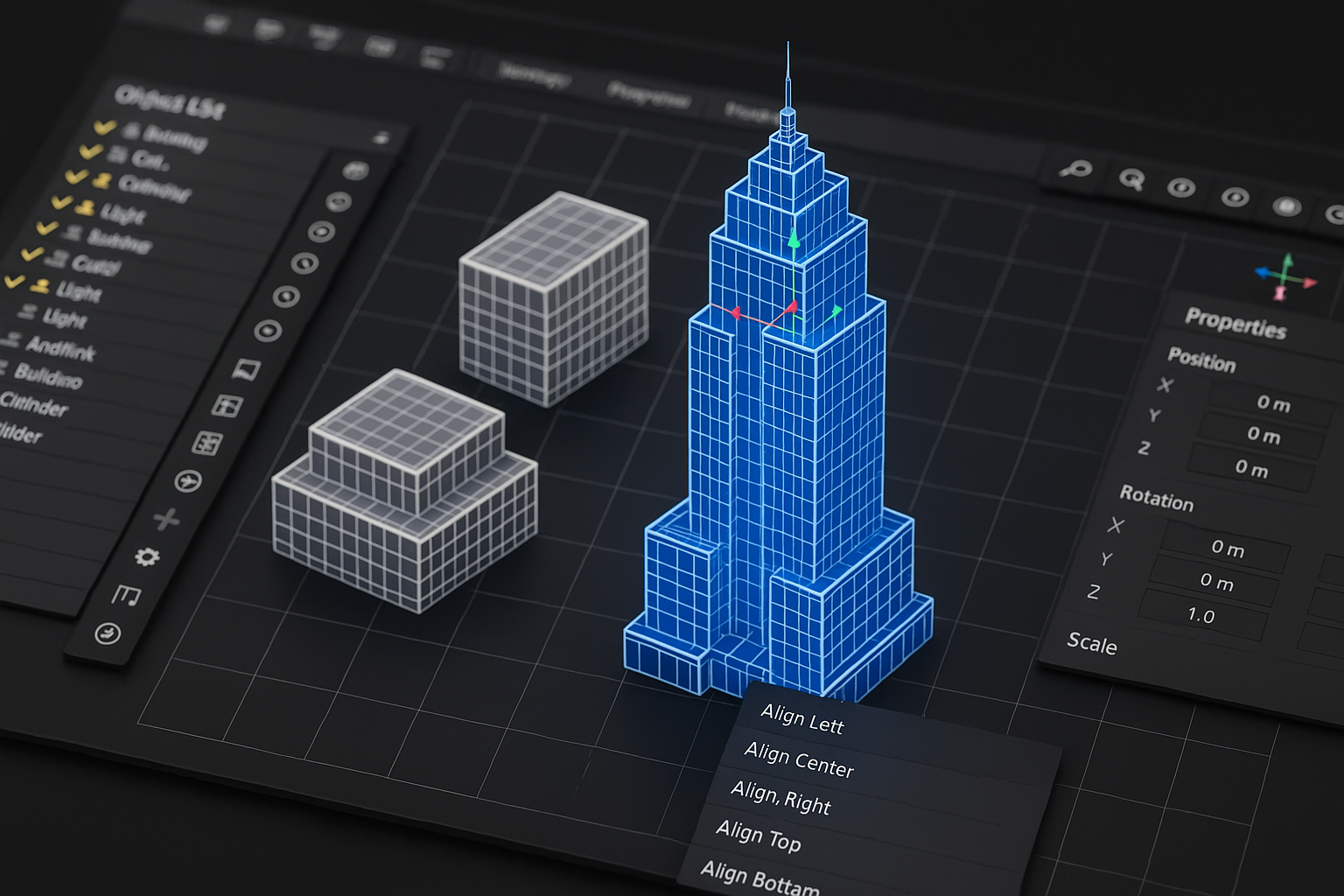

Example of Computer-aided Design (CAD) — CAD (Computer-aided Design)

Purpose and History

Since the 1960s, computer-aided design, or CAD, has revolutionized the draughting process by digitising conventional drawing techniques and enabling professionals to create precise 2D drawings and 3D models.

Common Tools

AutoCAD
Rhino
SketchUp (early-stage visualisation)

Ideal Use Cases

2D site layout for urban development
Drafting zoning maps and parcel plans
Creating schematic designs for buildings or roads

Urban Planning Context

For instance, a planner might use CAD for land boundaries, road alignments, and zoning areas, even before performing 3D modelling or data integration. In the initial stage of urban planning, master plans, transit corridors, utility layout, and housing estates are the aspects that are often designed using CAD.

‍

What Is BIM?

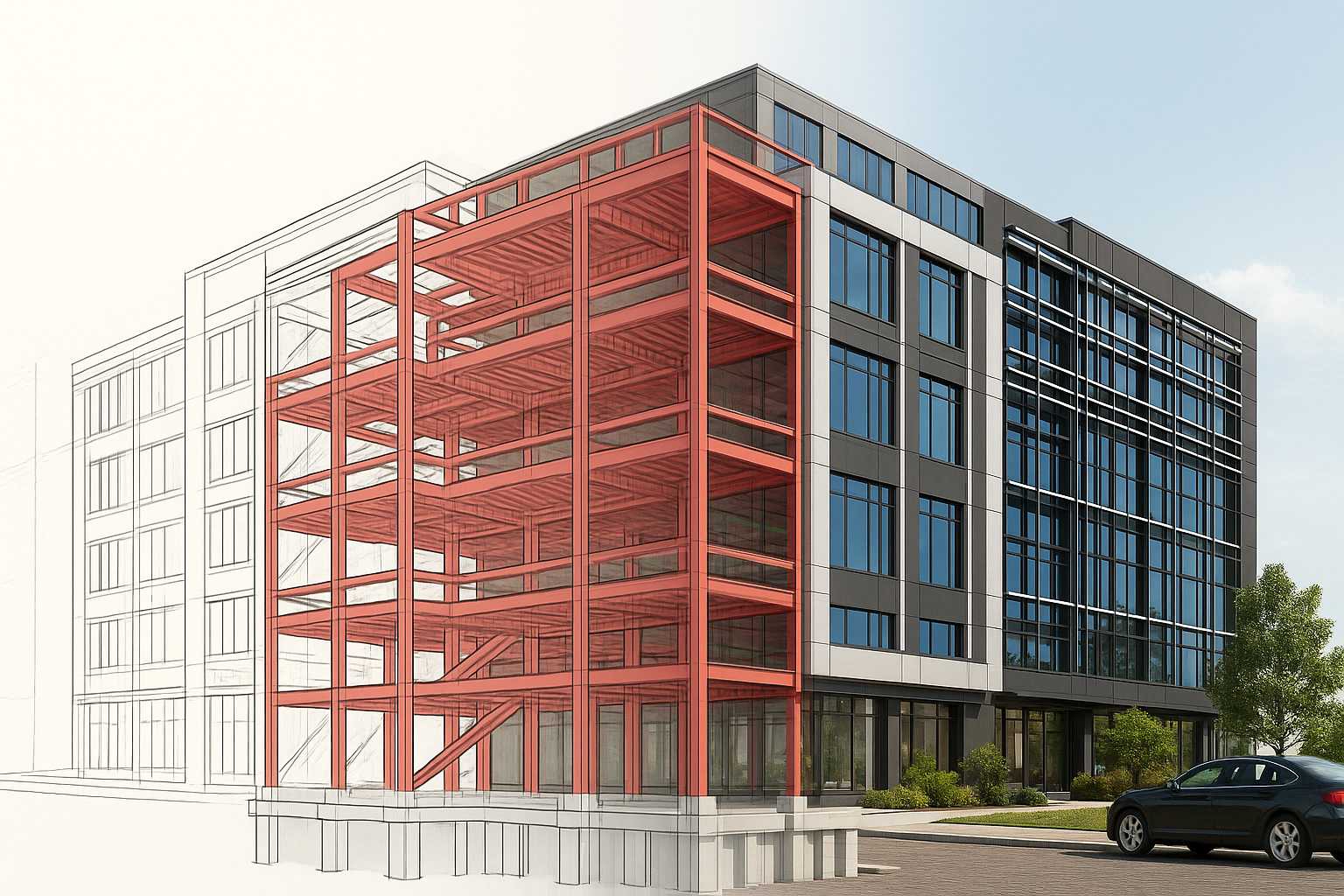

Example of Building Information System (BIM) — BIM (Building Information Modelling)

Purpose and Evolution

The AEC industry has rapidly adopted Building Information Modelling, or BIM, a relatively new technology. In contrast to CAD, BIM is data-driven, allows for 3D modelling, and includes thorough documentation for all components, including energy-efficient features, pipe diameters, and wall materials.

Common Tools

Revit
ArchiCAD
Vector works
Tekla

Ideal Use Cases

Modelling high-rise buildings
Infrastructure projects like transit stations
Integrated design and construction documentation

Urban Planning Context

For urban designers, BIM is very helpful for modelling complex projects. When designing a new transit-oriented development, for example, BIM helps stakeholders to understand how the building will interact with nearby utilities, roads, and infrastructure. Using BIM, planners may simulate pedestrian traffic, water runoff, and even sun exposure.

‍

BIM vs CAD: Here’s a comparative breakdown

Feature	CAD	BIM
Data	Primarily geometric	Geometry+metadata
Collaboration	File-based	Centralized/shared models
Visualization	2D and basic 3D	Advanced 3D with real-time data
Revisions Application in Urban Design	Manual	Automated coordination

‍

Detailed Urban Planning Perspective

• Data Handling: You create a route in CAD. A road's width, material, and drainage system are all modelled in BIM.

• Cooperation: Several teams, including architects, traffic engineers, and GIS analysts, may collaborate on a single model using BIM. Many stakeholders are frequently involved in urban planning projects; real-time coordination is made possible by BIM.

• Visualization: BIM tools let you visualise how a planned development would seem from the perspective of a pedestrian or how public areas would be affected by shadows, two crucial elements of urban planning.

‍

Benefits of CAD and BIM in Urban Planning

CAD Strengths

Simpler and more lightweight for early-stage drafting
Highly detailed 2D representations
Ideal for site plans, road alignments, or schematic maps

BIM Strengths

Integrates spatial and construction data
Useful for life cycle analysis, cost estimation, and sustainability
Supports regulatory compliance, such as fire safety or energy modelling

Urban Design-Specific Examples

CAD: Drafting a new housing layout with parcel boundaries and road networks.
BIM: Developing a mixed-use complex with detailed building information, connected to GIS data for flood risk and traffic simulation.

‍

Pros and Cons of BIM and CAD

Criteria	BIM – Pros	BIM – Cons	CAD - Pros	CAD - Cons
Complexity Handling	Ideal for large-scale, multi-layered projects such as city centers or mixed-use developments	Steep learning curve and requires high-end systems	Great for simple site layouts and infrastructure lines	Not suitable for multi-disciplinary coordination
Data Integration	Stores and manages metadata for urban elements (e.g., zoning, utilities, materials)	Complex models can slow down systems	No data integration—just geometry	Limits analytical insights, no smart data storage
Collaboration	Real-time collaboration between multiple urban development stakeholders	Requires strict version control and training	Easy to manage for individual drafters or small teams	Not ideal for collaborative or integrated workflows
Visualization and Analysis	High-quality 3D renders, sunlight/shadow simulation, and walkability analysis	May require additional plug-ins for certain visuals	Quick drafts for presentations or zoning meetings	Lacks immersive or spatial simulation features
Urban Design Use Case	Excellent for modelling streetscapes, parks, TODs with utilities and environmental layers	Less effective in early-stage massing unless paired with conceptual tools	Perfect for sketching grids, parcels, road geometry	Difficult to scale up or integrate environmental aspects
Cost and Accessibility	Valuable for long-term use; saves time and cost in complex projects	Software and training costs are high	Lower upfront cost and easier to adopt	May incur costs later if models need rework in BIM

When to Use BIM vs CAD

Scenario	Recommended Tool
Early-stage conceptual layouts	CAD
Detailed building design and analysis	BIM
Streetscape visualization	BIM
Zoning maps and area plans	CAD
Integrated infrastructure planning	BIM

How Digital Blue Foam (DBF) Fits into This Workflow

In addition to CAD and BIM, Digital Blue Foam (DBF) is an AI-powered urban design tool that enables planners and architects to quickly develop and evaluate design options at the conceptual stage by combining data, environmental considerations, and urban design.

Urban Planning Example

Suppose you are designing a new residential neighborhood. Massing models based on road access, walkability, and sunshine exposure can be produced rapidly with DBF. After approval, the concept will be exported for documentation into AutoCAD (a CAD program) or Revit (a BIM tool).

Architectural Example

With DBF, while designing a mixed-use skyscraper in a tight city, an architect may quickly examine a range of massing options in response to height restrictions, sunshine requirements, and wind studies. Before going into the precise modelling phase of the BIM (as in Revit), the DBF acts as a tool to help the architects understand how their building fits into the larger urban fabric. Once the ideal form has been decided upon, the model can be further developed in a BIM platform with structural systems, material data, and MEP coordination.

‍

Why DBF Matters for Planners and Architects

DBF serves as a link between meticulous execution and early innovation. It allows for shorter feedback loops for environmental performance, zoning compliance, and walkability that are often encountered in whole districting. To ensure that aesthetic and performance goals align with site conditions and urban standards, it allows architects a simple way to assess and optimize design decisions at the beginning. Quick iteration, linked data, and easy export to CAD or BIM workflows benefit both disciplines.

‍

Conclusion

The stage, scope, and complexity of a project influence whether you use BIM or CAD. CAD is also used for the creation of preliminary drafts in architectural and urban design, and there it is still widely used. It’s ideal for quickly creating schematic site plans, zoning diagrams, and conceptual layouts. Due to its simplicity, it should also be able to communicate basic design concepts without the requirement of cross-disciplinary integration or complex information.

BIM is important project grows larger, and more involvement is required. Architects may, for example, guide all phases of the building life cycle, from conceptual design and construction documentation to facilities management, and planners may factor in environmental, infrastructural, and social data into 3D visuals. BIM promises better compliance, easier interdisciplinary cooperation, and more sustainable designs.

Digital Blue Foam is a software that makes this transition easier. DBF helps experts coordinate their vision and implementation. It allows planners to develop intelligent urban models that respond to real-time inputs and architects to explore massing and performance alternatives without the need for laborious modelling. By bringing intelligence, speed, and clarity to the process of building a community or skyline, DBF bridges the gap between the complexity of BIM and the simplicity of CAD in a way that encourages innovation and cooperation.

‍

Frequently Asked Questions

1. Is BIM better than CAD?

Not necessarily. CAD is better for early-stage and simple drafting, while BIM is better for detailed, integrated projects.

2. Can you use both CAD and BIM together?

Yes! Start with CAD for initial drafts, then migrate to BIM for execution and coordination.

3. What are the pros and cons of BIM vs CAD?

CAD is perfect for early investigation of zoning or infrastructure choices in scenario planning since it provides ease of use and speedy drafting for several conceptual layouts. It is deficient in data integration and analytical depth, nevertheless. However, BIM's complexity and resource needs may be a deterrent during the early phases of planning. This is because it enables dynamic scenario testing with real-time data on environmental, structural, and regulatory consequences.

‍
