How to Design a Sustainable Urban Drainage System (SUDS)

Urban neighborhoods are at risk of flooding due to the increased prevalence of impervious surfaces and heavier rainfall, which can overload storm sewers.

A Sustainable Urban Drainage System (SUDS) is a green approach to stormwater management in cities that harvests rain through elements such as green roofs and permeable pavements. This guide documents SUDS advantages, design considerations, and a step-by-step planning process, including integrating  Digital Blue Foam (DBF) into resilient neighborhood planning.

What is a Sustainable Urban Drainage System?

A Sustainable Drainage System (SUDS or sustainable drainage system) is a landscaped and engineered system of controls that guides rainwater runoff naturally. In contrast to piped rainwater to sewers and pipes, SUDS dissipate and store runoff by using green infrastructure. Rain gardens or bioswales are one type, storing and absorbing water on site, and ponds and constructed wetlands temporarily store water.

SUDS lower flood and water quality benefits by lowering peak flow rates and volume of storage. It is also termed as low-impact development (LID) or water-sensitive urban design as it attempts to make urban drainage simulate the natural water cycle.

Benefits of SUDS

SUDS are of use to a city in many ways:

• Flood mitigation: SUDS trap water on the site and reduce the rate and quantity of flow of water into sewers, reducing downstream peak flood levels. Green infrastructure components block water from waterways, and cities become climate change resilient.
• Water quality: There is natural filtering out of stormwater pollutants by vegetation and soil in SUDS, leaving cleaner water in rivers and lakes. The systems break down or filter pollutants such as oils, sediments, and nutrients.
• Biodiversity & amenity: Wetlands, green roofs, and rain gardens create stunning green space and vegetation and wildlife habitat. Public-supplied naturalized space, park, or playground space is created to hold floodwater and enhance liveability.
• Stormwater storage: SUDS recharge groundwater and conserve water. In storing rain (for slow release or irrigation), they reduce urban drain reliance and municipal water use.

By integrating flood protection with environmental and recreational benefit, SUDS make cities stronger and safer (and more for fewer dollars than gray infrastructure).

‍

Design Principles of SUDS

Good SUDS serve four broad purposes ("SuDS' four pillars"):

• Water Quantity (Prevention & Flow Control): Reduce runoff by slowing and detaining it. Methods such as detention ponds and aquifer recharging. Try to catch the pre-development, "greenfield" quantities of runoff and peak flow rates (to the extent possible).
• Water Quality: Sustainably treat stormwater in place to remove toxins. Vegetated SUDS filter chemicals and sediments out, pre-reducing contamination prior to water entering streams.
• Amenity: Create inviting open spaces for people. Park ponds and wetlands are SUDS that are landscape, offering recreation, urban heat mitigation, and aesthetics.
• Biodiversity: Improve habitat and ecology. Recurring rain garden and wetland planting benefits wildlife and native plant growth, improving urban biodiversity.



These principles guide planners to “manage the water on the surface” sustainably.

‍

Major SUDS Components

Common SUDS features are:

• Permeable paving: Porous or voided surface (e.g., permeable pavers or asphalt) that permits rainwater percolation to sub-base storage. This minimizes flood and overland flow.
• Green roofs: Roofing material topped with vegetation that harvests rain. Vegetation and soil on a green roof will absorb water, minimizing and slowing runoff.

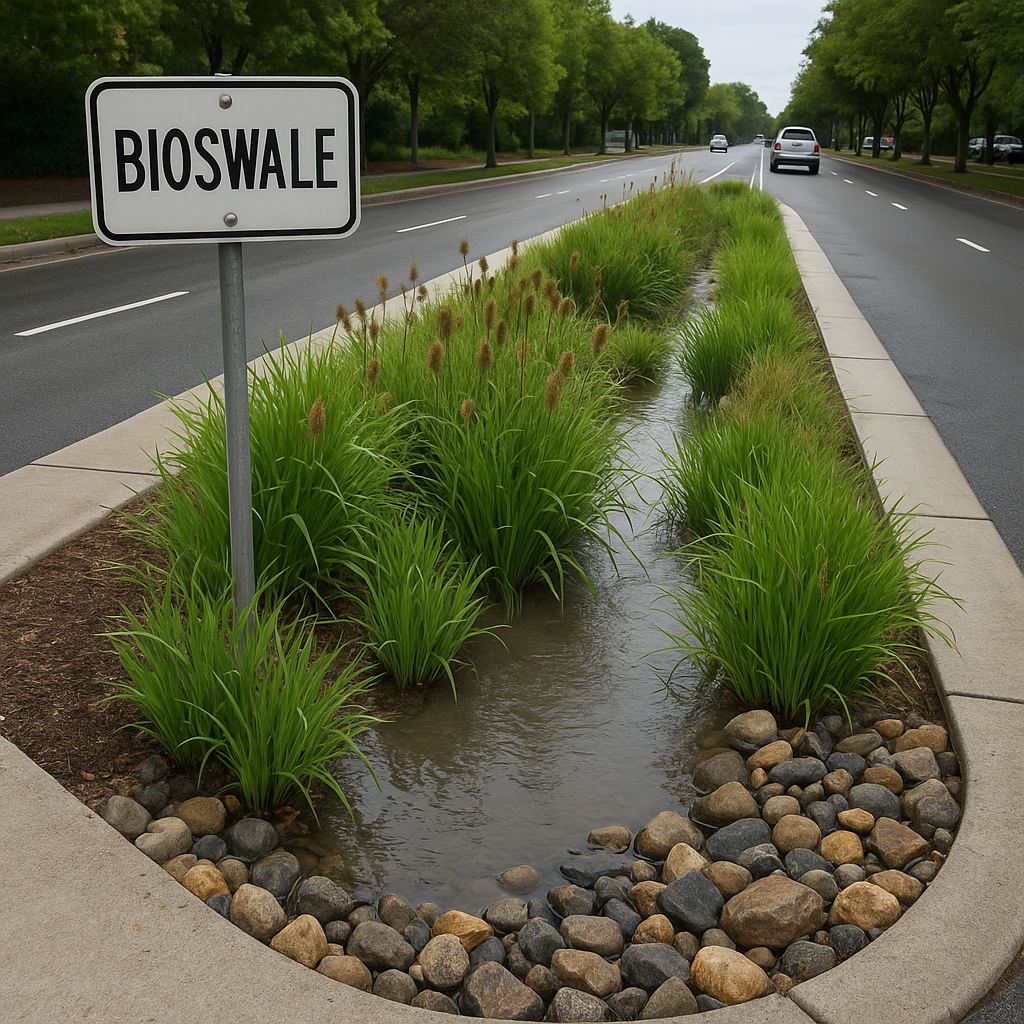

• Swales (Bioswales): Shallowly placed stormwater channels. Swales slow down precipitation runoff and remove pollutants by sedimentation and plant assimilation. Check dams may be incorporated into swales to increase infiltration even more.
• Rain gardens: Low plots of land for plantings that will catch roof and pavement runoff. A rain garden will hold the water and let it percolate into the ground, filtering out some of the pollutants through plants and soil.
• Detention/retention basins: Ponds or tanks that store excess overflow temporarily or store water all year. Both reduce peak flows. A dry detention basin releasing slowly and a wet pond also storing treatment and habitat is a good example.
• Constructed wetlands: Artificial marshes planted with wetland plants and soil. They capture and filter stormwater, draining it of wildlife habitat and nutrients.

All features are selected based on site conditions and design intention. Swales and rain gardens, for example, are used for on-site control of small amounts, and ponds and wetlands control large flow and shape ecology.

‍

Planning Steps Guide

• Site Analysis:
  Analyze the site conditions - topography, soils, general land use, drainage, and flood regime. Identify where the elevation and flow lines are and measure the impervious areas. Water flow and floodplain data is now relevant. This will establish constraints and alternatives for infiltration or storage.
• Stormwater Modeling:
  Hydrologic models quantify runoff volume and peak flow. Future projected climate rainfall is utilized for determining the volume of water to be attenuated or stored. Modeling provides the volume that is to be attenuated or stored to attain flood mitigation.
• Establish Goals:
  Set clear SUDS performance standards. For example, define 1-in-100 year storm to greenfield runoff ratios, or capture a chosen percentage of annual rainfall on site. The standards should cover flood management, pollution mitigation, and amenity goals.
• Select SUDS Elements
  According to site analysis and design brief, choose the most appropriate SUDS components. Ponds and wetlands would be required in parkland, while rain gardens and green roofs would be required in a small city lot. Cross-reference the components with site conditions – the successful scheme then has to be negotiated with the stakeholders in an attempt to achieve the best out of the landscape and community.
• Computer Simulation:
  Try out several designs and configurations using planning software. Programs such as Digital Blue Foam enable you to enter information about the site (terrain, infrastructure, weather) and automatically generated site plans are presented. DBF's algorithms can model drainage systems in DBF so you can see your options (e.g., various basins and swale arrangements) before final engineering.
• Integrate with Urban Planning
  Design SUDS into building, street, and public space. Design double-duty features  e.g., plaza as floodable park or tree-trenched boulevard. Design for beauty, accessibility, and hydraulics. SuD planning should "take into account needs for urban design … especially in relation to landscape, visual effects, biodiversity and amenity."
• Stakeholder Engagement
  Involve engineers, landscape architects, planners, and residents. Show design alternatives (e.g., in DBF illustrations) and ask for comments. Adapt the SUDS plan to local and legislative requirements. Involving everyone at the start will enable the ultimate solution to offer the greatest flood reduction for cost, usage, and green amenity.
  ‍

Case Studies

Real life examples prove the efficacy of SUDS (sustainable drainage systems).

A Copenhagen drainage plan was made after a storm in 2011 to boost its capacity and build around 300 surface schemes to retain water. This hybrid approach reduced flood risk and cost significantly over the single upgrade of sewers.

Singapore's ABC Waters Programme has turned waterways into parks that deal effectively with stormwater, providing recreational space with lower flood risk.

In London, neighborhood ordinances require developers to incorporate low levels of runoff into new construction, resulting in the use of features such as rain gardens and permeable pavements. These photographs demonstrate that SUDS can be implemented on a city-wide level, utilizing engineering and policy to protect people and property more cost-effectively than the traditional method.

‍

Use of Digital Blue Foam (DBF) in SUDS Design

DBF is a urban planning paradigm through which green infrastructure and stormwater management can be combined. DBF is input with  spatial data, satellite images, terrain, infrastructure, weather – and AI creates design scenarios. Planners define goals (e.g., optimize stormwater retention or green cover), and DBF will output a series of layout options to realize them.

In reality, DBF allows you to model DBF drainage networks in minutes: pond, park, green roof siting can be compared and you can view metrics such as built area vs. permeable area in minutes. It allows water-sensitive urban design: hundreds of SUDS configurations can be tested by teams to design the optimal one.

In short, DBF's platform facilitates green infrastructure planning since it allows for ease of visualizing environmental data, experimenting with alternatives, and building resilient, sustainable cities.

Ready to Construct a Flood-Resilient City? Test Your Drainage System with DBF Today.

‍

Conclusion

SUDS are not a choice, but a must for building sustainable, healthy cities. Harmonious with, not against, nature, SUDS reduce the risk of flooding, eliminate contaminated runoff, and provide public open space. SUDS also have advantages outside of the engineering community: they enhance the health of cities, biodiversity, water security, and quality of life.

With rising urban rainfalls and urbanization, the integration toward blue-green infrastructure needs to be accelerated. And with new technologies such as Digital Blue Foam, urban planners can now model, simulate, and optimize SUDS at the early planning phase such that improved designs are possible, balancing performance and aesthetics and integration with community requirements.

Regardless of whether you are redeveloping a road, constructing a park, or a new housing estate, sustainable drainage is your top priority. It is the secret to a city that not only survives despite climate change but prospers in harmony with nature.

‍

Frequently Asked Questions

1. Provide a definition of a sustainable urban drainage system (SUDS).
   A SUDS is a stormwater runoff drainage system that naturally treats stormwater. Contrary to flushing water right down the drains, SUDS use such features as rain gardens, bioswales, and ponds to capture, slow, and filter rainwater. They mimic drainage regimes in nature, reducing flood risk in urban spaces, purifying the water, and creating green open space.
2. Why are SUDS significant to cities?
   Cities are a concentrated group of hard surfaces (roads, buildings) that convert rain into high-flow runoff, leading to water pollution and flood damage. With increasingly severe storms being produced as a consequence of global warming, sewer system upgrade overflows increasingly. SUDS avoid flooding and maintain water quality by harvesting rain at the point of fall and reusing or allowing it to soak into the ground, lowering peak flood levels downstream and storing water contaminants. SUDS offer recreation and habitat, healthier and more sustainable cities.
3. Are there certain typical SUDS practices or characteristics?
   The following are typical SUDS elements: permeable pavements, green roofs, swales/bioswales, rain gardens, detention/retention basins, and constructed wetlands. Each is chosen for site-specific purposes. Soakaways and permeable paving, for instance, allow stormwater to soak into the ground on site, and ponds and wetlands allow stormwater to be stored and treated. Selection of components needs to be with regard to site conditions and objectives, normally with the assistance of engineers and the public.
4. How is Digital Blue Foam (DBF) used to create a SUDS?
   DBF supports GIS data integration and generative design. DBF takes terrain, imagery, and weather as input data and allows you to specify goals such as stormwatention optimization. DBF's AI creates a sequence of potential site configurations. You can iterate various SUDS configurations minute by minute (e.g., rain garden or swale location) and observe their influence instantly using this sequential approach. Step-one simulation saves time and ensures SUDS design flood and environmental regulations compliance prior to detailed design.

‍
